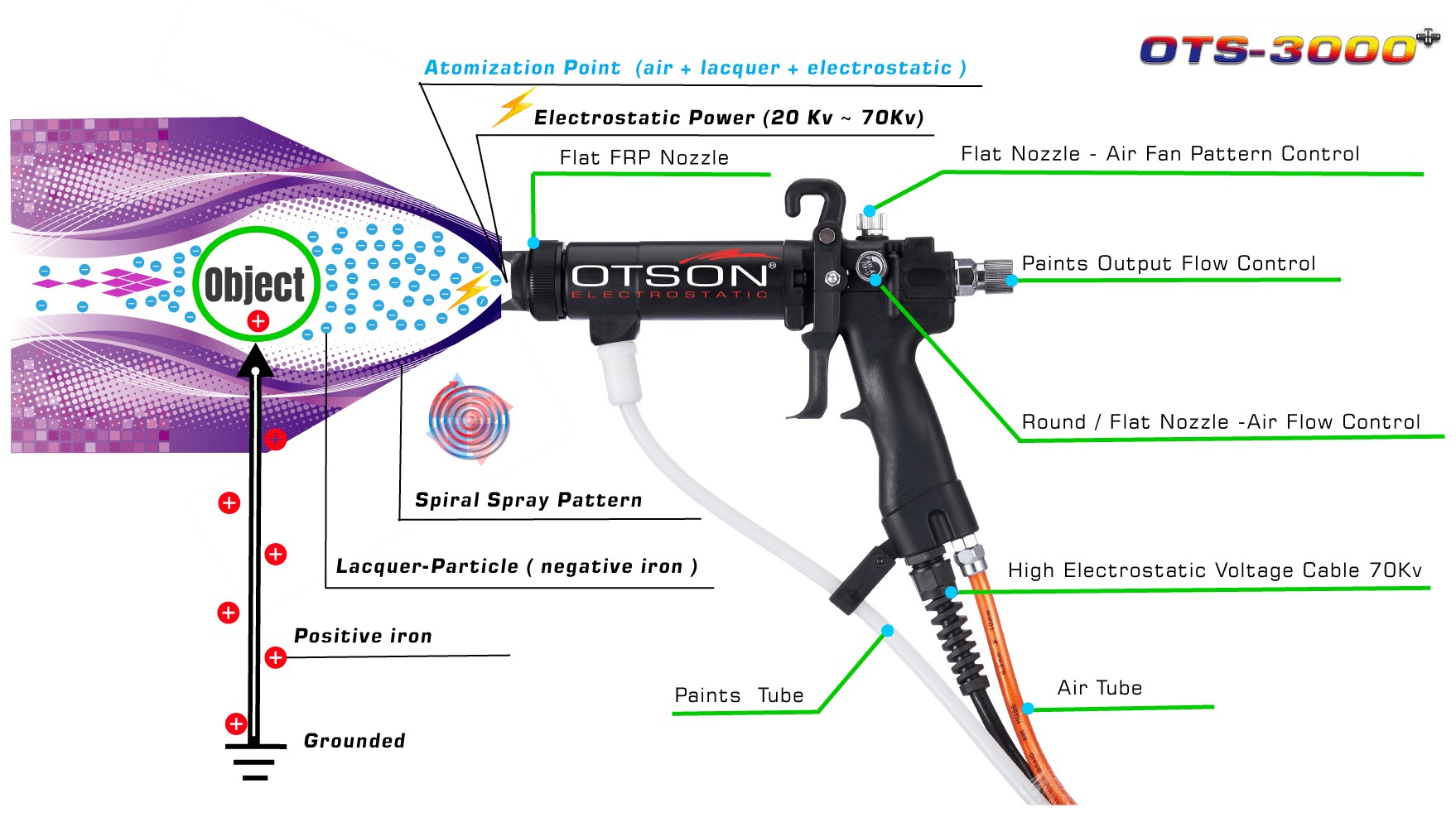

Manual liquid electrostatic spray guns, just like conventional spraying equipment, rely on air or highpressure
to atomize the lacquer. The particles of lacquer are then charged as they exit the nozzle.Different
air nozzles cap and material, which create different spiral spray pattern, are available for OTSON liquid
electrostatic spray guns.
These spiral effect reduces lacquer-particle velocity. Therefore the lacquer will be atomized. The
technique involves applying a charge, usually negative, to the coating material as it is atomised. The
negatively charged spray droplets are attracted to any earthed surface; if the workpiece is earthed, the
negatively charged droplets are attracted preferentially to it.
This effect is so powerful that, with some objects, coating spray can be observed to ‘wrap around’.In
this way, the purpose of the electrostatic coating is achieved which can offer transfer efficiency up to 95%
and minimize the over spraying phenomenon obviously. OTSON is keeping researchs and developments
in electrostatic equipment in last 30 years, the technologies of OTSON electrostatic can now also be used
for waterborne paints ,solvent paints and lacquers.
